Torque Monitor

WIRELESS

SHAFT POWER & TORSIONAL VIBRATION ANALYSIS

with TorqueMonitor software

TorqueMonitor software was developed as a special tool for measuring and analyzing shaft power and torsional vibration.

The software works in two modes: data registration and data reading. Both modes have the same functionality, and there is only one difference: in the Data Logging mode, the program stores raw data files, and the Data Reading mode works as a “data player” with saved data files. Thus, you can choose which data should be stored during the measurements, and then replay it for more in-depth analysis.

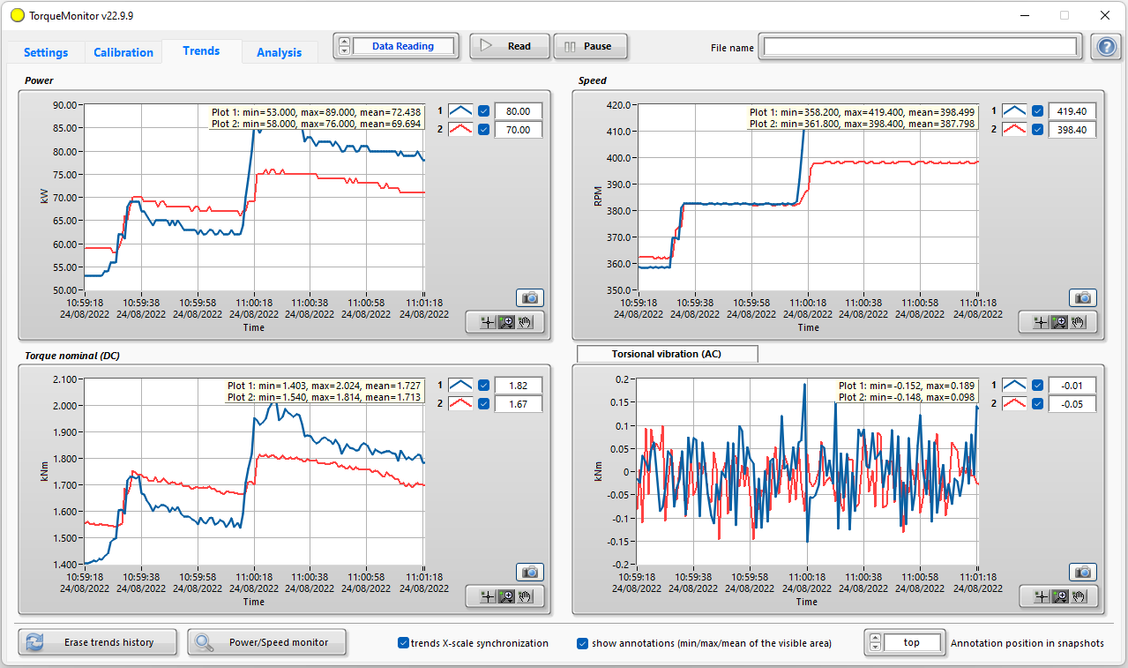

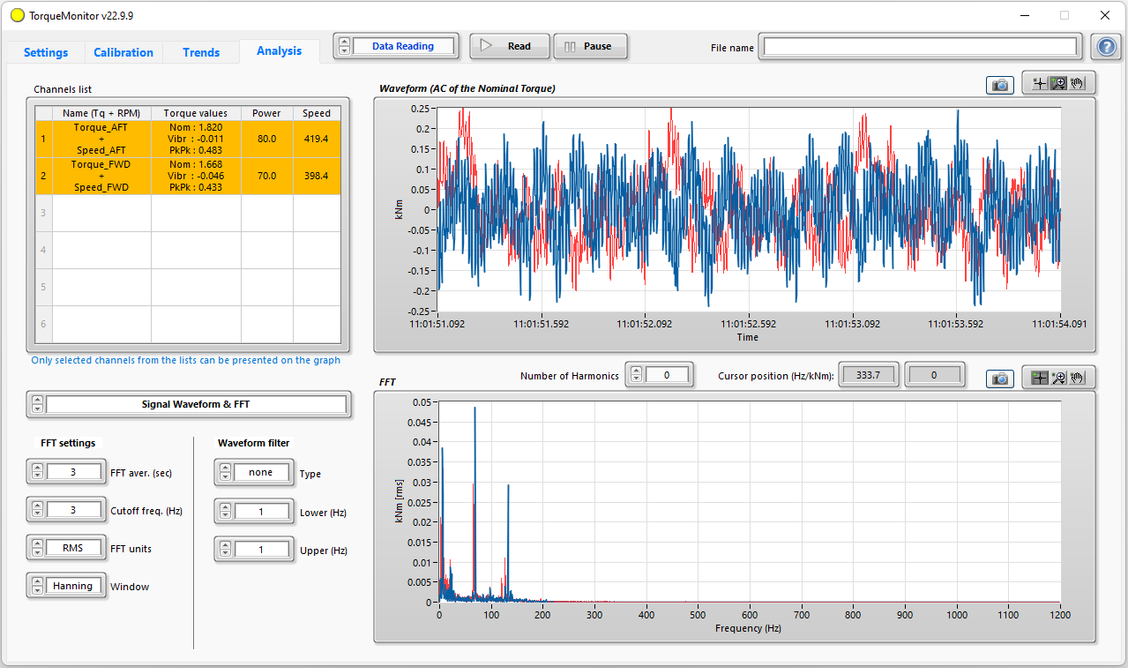

Below are some screenshots of the software.

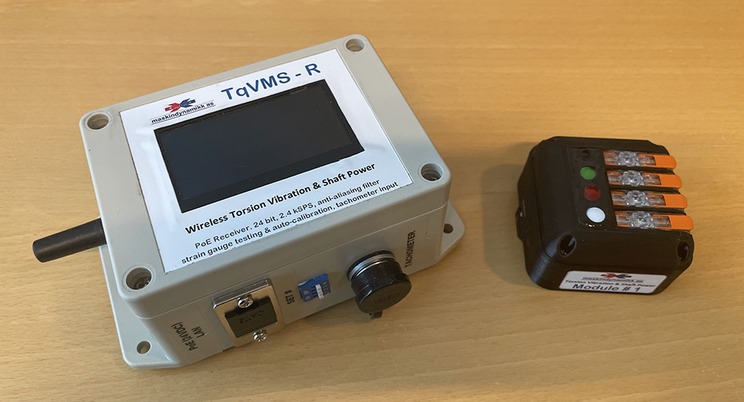

We use our own design wireless hardware for measurements

measurement hardware

PoE Receiver and wireless transmitter

24 bit, 2.4kSPS, anti-aliasing filter, strain gauge testing & auto-calibration

strain gauge tester

We use only high quality strain gauges

(with our company logo)
