PERMANENT SHAFT POWER & TORSIONAL VIBRATION
MONITORING
with OmegaPro software
OmegaPro was developed as a special tool for permanent installation on the shaft to measure vibrations and shaft power, and translate the values to the control system via different protocols.
OmegaPro can be installed on ship’s propellers shafts to enable accurate assessment of the efficiency of the system in terms of input (usually fuel or electrical) and output (mechanical shaft power).
Note: Shaft power is the mechanical power transmitted from one rotating element of a vehicle, a ship, and all types of machinery to another. It is usually calculated as the sum of the torque and the rotational speed of the shaft.
Features
- Highly Reliable
- Robust Design
- Contactless
- Maintenance Free
- Suitable for Any Shaft Diameter
- Highly Accurate Data
- System Repeatability: 0.05%
- Multiple Outputs: Modbus, RS485, RS232, Ethernet, 0-10V
- Operating Temperature: -20˚C + 75˚C
- Environmental Sealing: IP67
- Supply Voltage: 110 – 230 Vac
- One-Time Calibration (no Zero/Re-Calibration Required)
- Can Be Installed and Commissioned in 1-3 days
Can be used in a variety of applications such as:
- Continuous power output measurements for ship propulsion
- Continuous power and fuel consumption management
- Direct visual control of changes in engine setting, trim and draught
- Continuous monitoring of torque, speed, power or thrust

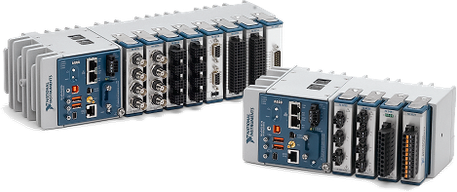

We use NI cDAQ Controller that has integrated multi-core processor with modular I/O, standard peripheral connectivity, and display capabilities.
The CompactDAQ Controller is a rugged, reliable, high-performance embedded controller with industry-standard certifications. It is ideal for performing waveform acquisition and inline software analysis while logging data to onboard or removable SD memory. We use modules that deliver high-accuracy I/O with measurement-specific signal conditioning to connect to any sensor type. The controller also offers a wide array of standard connectivity and expansion options, such as USB, Ethernet, RS232 and Serial.
